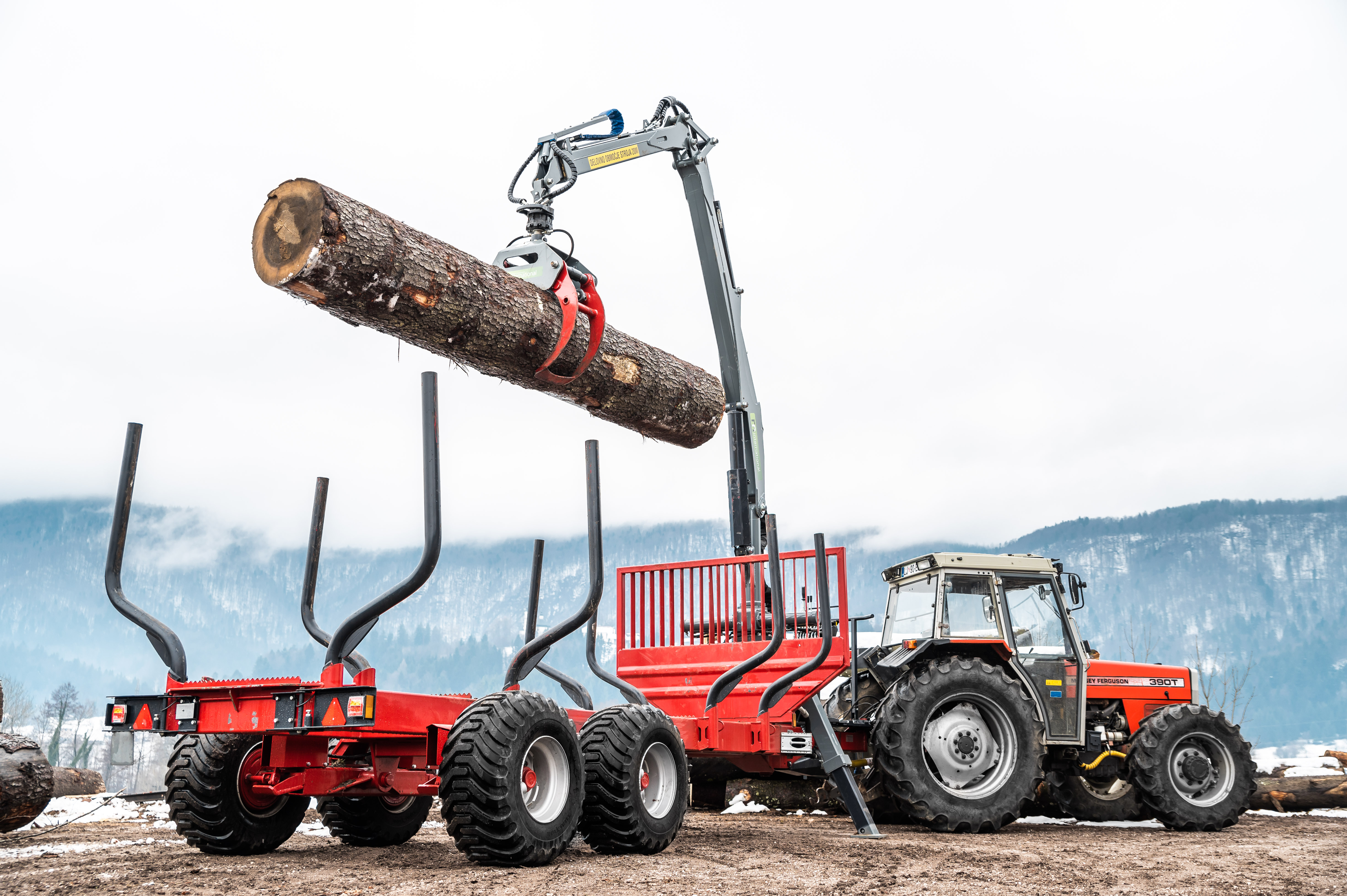

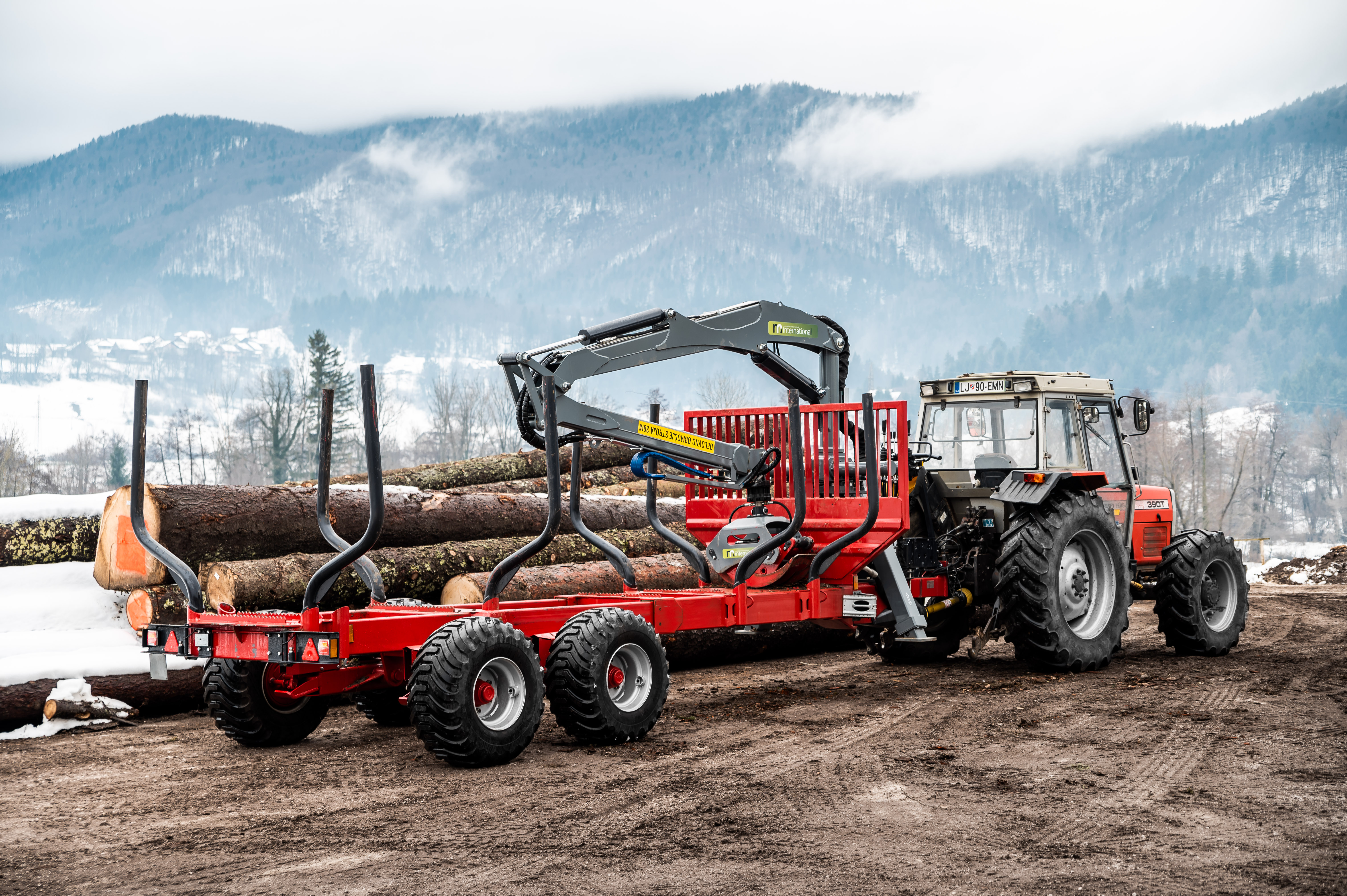

Forestry trailer RW 12
The RW 12 has a very stable tube frame with double frame 200 x 100 x 6 mm hollow sections. The drawbar steering with 2 large cylinders ensures a great maeuverability and good handling characteristics.
Frame-double tube (mm) | 200x100x6 |
Loading capacity (kg) | 9.910 |
Loading space (m2) | 2,3 |
Length of the loading area (mm) | 3.725 |
The lowest point from the ground (mm) | 470 |
Turning angle | +/-30° |
Width (mm) | 2.240 |
Length (mm) | 6.100 |
Own weight (kg) | ca.2.090 |
Height of the arms (mm) | 1.200 |
Frame tube steering | Hydraulic cylinder 2x cyl. |
Wheels | 400/60-15.5/14PR |
Bolsters | 4 pair |
Brakes | 2x hydraulic |
Operating pressure (bar) | 180 |
Brakes | Various combination – hydraulic, overrun or air brakes |
Extension | 1,2m plus 2 extra bolsters |
Standing platform | Yes |
Drawbar | Standard or lower (By lower drawbar, overrun brakes are not an option) |
Mudguard | Yes |
Troughs for biomass | Standard or half troughs |
Tyres | Different tire sizes with different profiles |
